Advanced Tutorial

Tutorial on advanced updates, pruning and gradient queries

Overview

The previous tutorial gave an overview of the main abstractions in emb_opt for basic hill climbing. This notebook goes over some more advanced query updating strategies

from emb_opt.imports import *
from emb_opt.schemas import Query, Item, Batch, ScoreResponse, FilterResponse
from emb_opt.plugins.huggingface import HugggingfaceDataPlugin
from emb_opt.runner import Runner
from emb_opt.utils import build_batch_from_embeddings

import string
from datasets import Dataset

import matplotlib.pyplot as plt

/home/dmai/miniconda3/envs/emb_opt/lib/python3.9/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

Setup

To start, we’ll set up the same dataset, filter function and score function from the previous notebook

def get_dataset(n_vectors: int=10000, size: int=64):

    np.random.seed(42)
    vectors = np.random.randn(n_vectors, size)

    vector_data = [{
                    'index' : i,
                    'item' : ''.join(np.random.choice([i for i in string.ascii_lowercase], size=10).tolist()),
                    'rand' : np.random.rand(),
                    'embedding' : vectors[i]
                } for i in range(n_vectors)]

    vector_dataset = Dataset.from_list(vector_data)
    vector_dataset.add_faiss_index('embedding')

    return vector_dataset

def get_data_plugin(dataset: Dataset, k: int=10, distance_cutoff: Optional[float]=None):
    data_plugin = HugggingfaceDataPlugin(k=k,
                                         dataset=dataset,
                                         index_name='embedding',
                                         item_key='item',
                                         id_key='index',
                                         distance_cutoff=distance_cutoff
                                        )
    return data_plugin

def score_embeddings(embeddings: np.ndarray, sigma: float=5.) -> np.ndarray:
    target_point = np.ones(embeddings.shape[1])*.75

    distances = np.linalg.norm(embeddings - target_point, axis=1) / np.sqrt(embeddings.shape[1])

    scores = np.exp(-0.5 * (distances/sigma)**2)

    return scores

def score_plugin(inputs: List[Item]) -> List[ScoreResponse]:
    embeddings = np.array([i.embedding for i in inputs])
    scores = score_embeddings(embeddings)
    results = [ScoreResponse(valid=True, score=i, data=None) for i in scores]
    return results

def filter_plugin(inputs: List[Item]) -> List[FilterResponse]:
    return [FilterResponse(valid=i.data['rand']<0.9, data={'rand':i.data['rand']}) for i in inputs]

def get_input_batch(n_queries: int=5, size: int=64):
    np.random.seed(40)
    initial_queries = np.random.randn(n_queries, size)
    input_batch = build_batch_from_embeddings(initial_queries)
    return input_batch

dataset = get_dataset(n_vectors=10000)

100%|█████████████████████████████████████████| 10/10 [00:00<00:00, 1162.11it/s]

ground_truth = dataset.map(lambda row:
                            {'score' : float(score_embeddings(np.array(row['embedding'])[None]))})
ground_truth = ground_truth.filter(lambda row: row['rand']<0.9)
ground_truth = ground_truth.sort('score', reverse=True)

data_plugin = get_data_plugin(dataset, k=10)

Batch Creation

Here we create a Batch of starting queries

batch = get_input_batch()

Modules

Now we want to take our batch and run a database query, filter function query, and score function query. The easiest way to do this is wrapping our various functions in their corresponding Module class. Module classes handle gathering the correct inputs from a Batch and processing the outputs.

Internally, the Runner class is organized as:

Runner
    DataSourceModule
        DataSourceFunction
    FilterModule
        FilterFunction
    ScoreModule
        ScoreFunction
    PruneModule
        PruneFunction
    UpdateModule
        UpdateFunction

from emb_opt.data_source import DataSourceModule
from emb_opt.filter import FilterModule
from emb_opt.score import ScoreModule

data_module = DataSourceModule(data_plugin)
filter_module = FilterModule(filter_plugin)
score_module = ScoreModule(score_plugin)

batch = data_module(batch)
batch = filter_module(batch)
batch = score_module(batch)

Now we have a batch with filtered and scored items. We can verify this by iterating through query results within the batch.

for _, query_result in batch.enumerate_query_results(skip_removed=False):
    print(f'removed: {query_result.internal.removed}, score: {query_result.score if query_result.score else None}')

removed: False, score: 0.9716392517882978
removed: False, score: 0.9735146862660943
removed: False, score: 0.9778528690676259
removed: False, score: 0.9724728791637264
removed: False, score: 0.9782676902487691
removed: False, score: 0.9737127204592259
removed: False, score: 0.9804037820920216
removed: False, score: 0.9753909225654782
removed: False, score: 0.9694685722987455
removed: True, score: None
removed: True, score: None
removed: False, score: 0.9726323141284812
removed: False, score: 0.9692556815122584
removed: False, score: 0.9745647899839788
removed: False, score: 0.9629961168102679
removed: False, score: 0.9701815738190763
removed: False, score: 0.97486965277314
removed: False, score: 0.9711548702455153
removed: False, score: 0.9694112397200653
removed: True, score: None
removed: False, score: 0.9759289815073339
removed: False, score: 0.9773133941752246
removed: False, score: 0.9739640115726699
removed: False, score: 0.9623959805518694
removed: False, score: 0.9779404070528597
removed: False, score: 0.9741377917753992
removed: False, score: 0.9736229367471343
removed: False, score: 0.973143133055708
removed: False, score: 0.9710786179918796
removed: False, score: 0.9748908586503796
removed: False, score: 0.9694946512313679
removed: False, score: 0.9731516805295557
removed: False, score: 0.9779732635661752
removed: True, score: None
removed: False, score: 0.9672662450927711
removed: False, score: 0.9710809731569571
removed: False, score: 0.9757451096566242
removed: True, score: None
removed: False, score: 0.9734810008615996
removed: False, score: 0.9638052662639214
removed: False, score: 0.970608709429522
removed: False, score: 0.9755166555429822
removed: False, score: 0.9744431540375411
removed: False, score: 0.978210361238593
removed: False, score: 0.9736627269393461
removed: False, score: 0.9712608487343193
removed: False, score: 0.9779411824359353
removed: False, score: 0.9780864007137536
removed: False, score: 0.9759495684365427
removed: False, score: 0.9774162832279337

Update Function

Previously, we used the RLUpdate class to update our batch like so:

from emb_opt.update import RLUpdate, UpdateModule

update_plugin = RLUpdate(lrs=[.25], distance_penalty=0.)
update_module = UpdateModule(update_plugin)
new_batch = update_module(batch)

We can see the new batch contains the same number of new queries as the old batch

assert len(new_batch)==len(batch)
print(len(new_batch), len(batch))

5 5

Branching Updates

emb_opt supports update methods that generate a variable number of output queries. We can pass more learning rates to RLUpdate to take different step sizes based on our gradient.

update_plugin = RLUpdate(lrs=[0.1, .25, 0.5, 1.], distance_penalty=0.)
update_module = UpdateModule(update_plugin)
new_batch = update_module(batch)
print(len(new_batch), len(batch))

20 5

We can also use the TopKDiscreteUpdate to select k new queries from each parent query based on top scoring items

from emb_opt.update import TopKDiscreteUpdate

update_plugin = TopKDiscreteUpdate(k=4)
update_module = UpdateModule(update_plugin)
new_batch = update_module(batch)
print(len(new_batch), len(batch))

20 5

This allows for a lot of flexibility in how updates are executed, but creates a problem of managing the total number of queries. If the number of queries increases by a constant multiple, the total number of queries quickly gets out of hand and inefficient. We can manage this with the Prune step

Prune Function

A Prune function exists to prune queries to control the total query number. Pruning happens after Filter and Score steps, but before the Update step. This allows us to use score information to inform which queries we prune.

We can use any prune method that corresponds to the PruneFunction data model

PruneFunction = Callable[List[Query], List[PruneResponse]]

class PruneResponse(BaseModel):
    valid: bool           # if the input `Query` item is valid (if False, the associated `Query` is removed)
    data: Optional[Dict]  # optional dict of data associated with the prune response

from emb_opt.prune import TopKPrune, PruneModule

prune_plugin = TopKPrune(k=1, score_agg='mean', group_by='collection_id')
prune_module = PruneModule(prune_plugin)

# starting batch size
print(len(list(batch.valid_queries())))

# create new batch with more queries
new_batch = update_module(batch)
print(len(list(new_batch.valid_queries())))

# query, filter, score
new_batch = data_module(new_batch)
new_batch = filter_module(new_batch)
new_batch = score_module(new_batch)
print(len(list(new_batch.valid_queries())))

# prune
new_batch = prune_module(new_batch)
print(len(list(new_batch.valid_queries())))

5
20
20
5

Running with branching and pruning

Here we show running with branching and pruning. We use an RL update with several learning rates, and prune back to a single update by mean score. This allows us to converge to the top 1 result with fewer iterations

update_plugin = RLUpdate(lrs=[0.25, 1., 5.], distance_penalty=0.)
prune_func = TopKPrune(k=1, score_agg='mean', group_by='collection_id')

runner = Runner(data_plugin, filter_plugin, score_plugin, prune_plugin, update_plugin)

input_batch = get_input_batch(n_queries=3)

output_batch, search_log = runner.search(input_batch, 3)

0 0.97 0.97 0.97
1 0.98 0.97 0.98
2 0.98 0.98 0.98

We found the same top 1 result with reduced coverage of the full dataset

results = search_log.compile_results(skip_removed=False)
len(results)

112

k_vals = [1, 5, 10, 50]
recovered_ids = set([i['id'] for i in results])
metrics = []

for k in k_vals:
    gt_idxs = set(ground_truth[:k]['index'])
    percent_recovered = len(gt_idxs.intersection(recovered_ids))/k
    metrics.append(percent_recovered)

metrics

[1.0, 0.4, 0.3, 0.12]

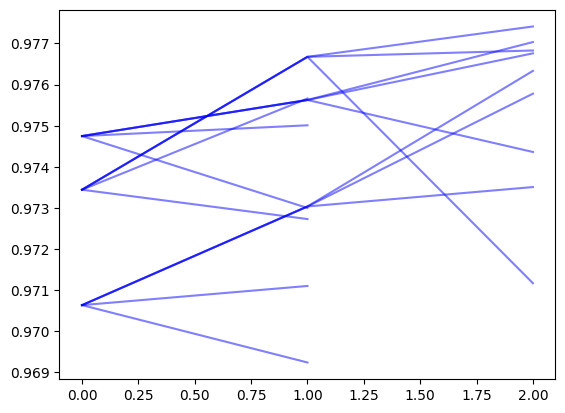

By plotting trajectories, we can see the branching and pruning

for final_node in search_log.query_tree.leaf_nodes(include_removed=True):
    mean_scores = []

    current = final_node
    while current:
        mean_scores.append(current.mean_score)
        current = current.parent

    plt.plot(mean_scores[::-1], color='b', alpha=0.5)

Gradient Based Queries

So far, we have used gradients to Update our queries. We can also use gradients in the query itself. We take a query embedding and project it along the score gradient, creating multiple queries.

For this to work, we need to know the gradient of the query embedding at query time. This is managed by the classes UpdatePluginGradientWrapper and DataPluginGradWrapper.

UpdatePluginGradientWrapper takes a new query and estimates its gradient using scored items from the new query’s parent query. The gradient values are stored in the new query’s data['_score_grad'] attribute.

DataPluginGradWrapper then uses this gradient to execute the gradient based query.

UpdatePluginGradientWrapper can be replaced by any custom method that assigns the gradient to the data['_score_grad'] attribute of queries. Note that the gradient is expected to point in the direction of increasing score

from emb_opt.data_source import DataPluginGradWrapper
from emb_opt.update import UpdatePluginGradientWrapper, TopKContinuousUpdate

Here we set up a run with the gradient based query. Since we are using gradients in the query step, we will swap out the RL update (also gradient based) with top k selection

update_plugin = TopKContinuousUpdate(3) # update averages top 3 embeddings
update_plugin_grad = UpdatePluginGradientWrapper(update_plugin, distance_penalty=0., max_norm=None)

lrs = np.array([0.1, 0.5, 1, 5])
data_plugin_grad = DataPluginGradWrapper(data_plugin, lrs)

runner = Runner(data_plugin_grad, filter_plugin, score_plugin, None, update_plugin_grad)

input_batch = get_input_batch(n_queries=5)

output_batch, search_log = runner.search(input_batch, 5)

0 0.97 0.97 0.97 0.97 0.98
1 0.97 0.97 0.98 0.97 0.98
2 0.98 0.97 0.97 0.98 0.98
3 0.97 0.98 0.98 0.98 0.98
4 0.97 0.98 0.97 0.98 0.97

results = search_log.compile_results(skip_removed=False)
len(results)

349

k_vals = [1, 5, 10, 50]
recovered_ids = set([i['id'] for i in results])
metrics = []

for k in k_vals:
    gt_idxs = set(ground_truth[:k]['index'])
    percent_recovered = len(gt_idxs.intersection(recovered_ids))/k
    metrics.append(percent_recovered)

metrics

[1.0, 0.4, 0.4, 0.34]
